Trigger the Camera

This page will show how to test the camera triggering manually or by autopilots.

The 45S V1 has a manual trigger button, if you need to test the camera triggering, you can either manually trigger the camera by pressing the shutter botton at the back of the camera, or by autopilots.

below photo shows the camera triggering by RELAY:

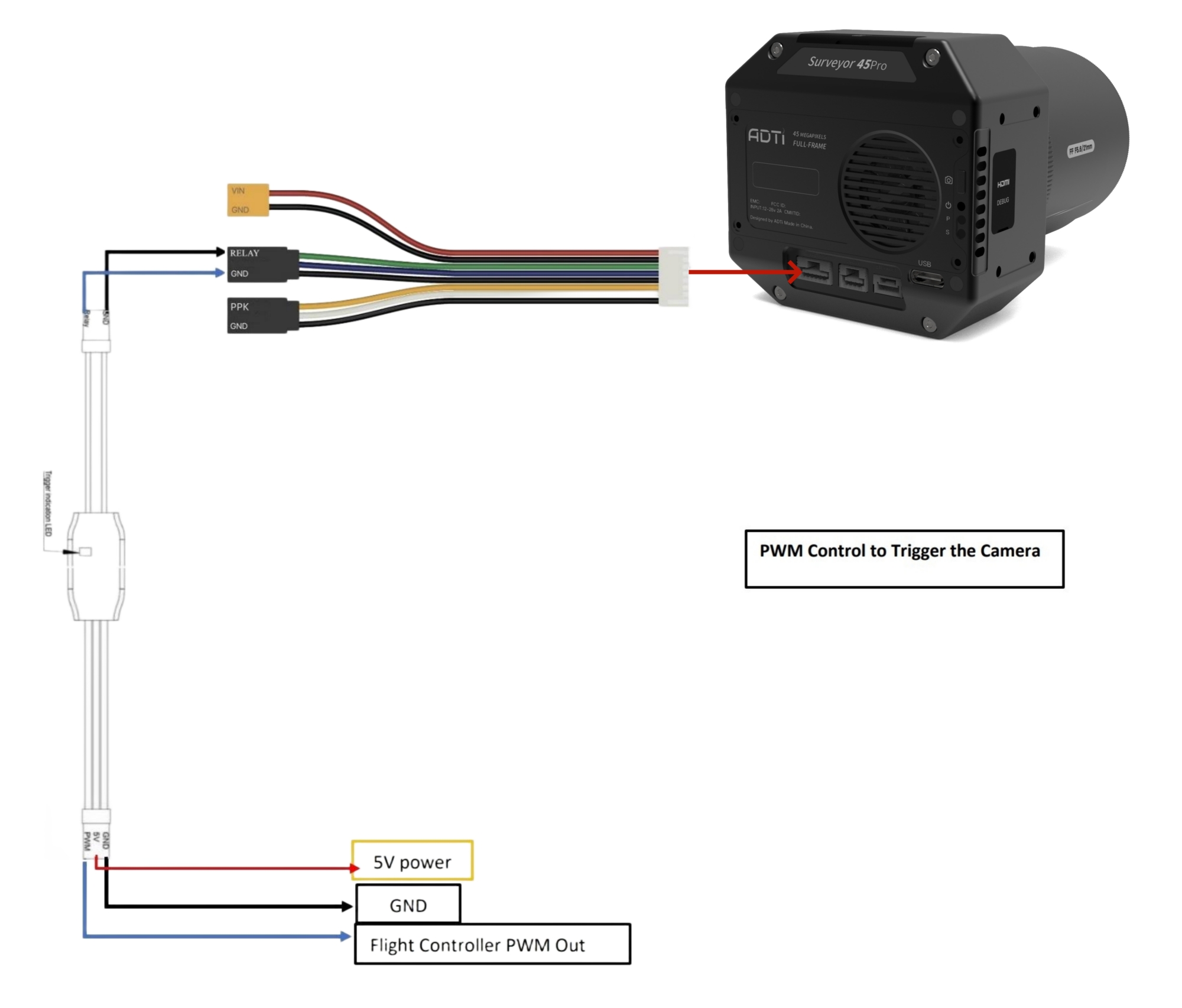

below photo shows the camera triggering by PWM with ADTI Relay-to-PWM module:

Please check Portal [ADTI PX4 or Ardupilot Setup] for triggering camera by autopilot.
