ADTI CAM Assistant 1.1 #3

ADTI CAM Assistant 1.1 is a ADTI self-developed camera module PC (windows 64) system for 45S V1 module camera settings.

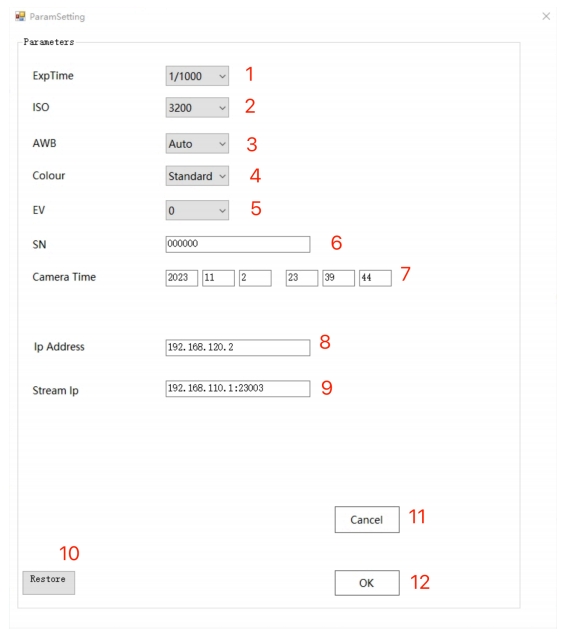

1. CAM Setting

CAM Setting = camera setting change, there are some parameters that you can simply change and save by ADTI CAM Assistant 1.1.

1. Exposure parameter setting,If your drone is fixed-wing, select a parameter faster than 1/1000.

2. ISO parameter setting,if you have good light, choose the smallest possible ISO to reduce photo noise.

3. AWB mode setting, there are three modes to choose from, automatic, sunny and cloudy, usually we choose auto.

4. Color mode, we usually choose the standard.

5. Exposure compensation parameter, default is 0. 18/19

6. SN code, each camera has a unique SN code for tracking production and after sales.

7. Camera time setting.

8. IP address used to remotely download photo files.

9. IP address of the real-time network video stream output, the camera defaults to RTSP mode output.

10. Restoring the camera's factory default settings

11. Cancel Settings

12. Press OK to confirm that the settings and take effect, no need reboot the camera.

1. Firmware Upgrade

Select the camera FW Bin file to upgrade the camera firmware in real time on a PC, or place the Bin file in the SD of the camera and power on the camera for automatic firmware upgrade.

1. Enable IP video Stream

Click once to enable the video streaming feature and once more click to disable the function
