Power the Camera

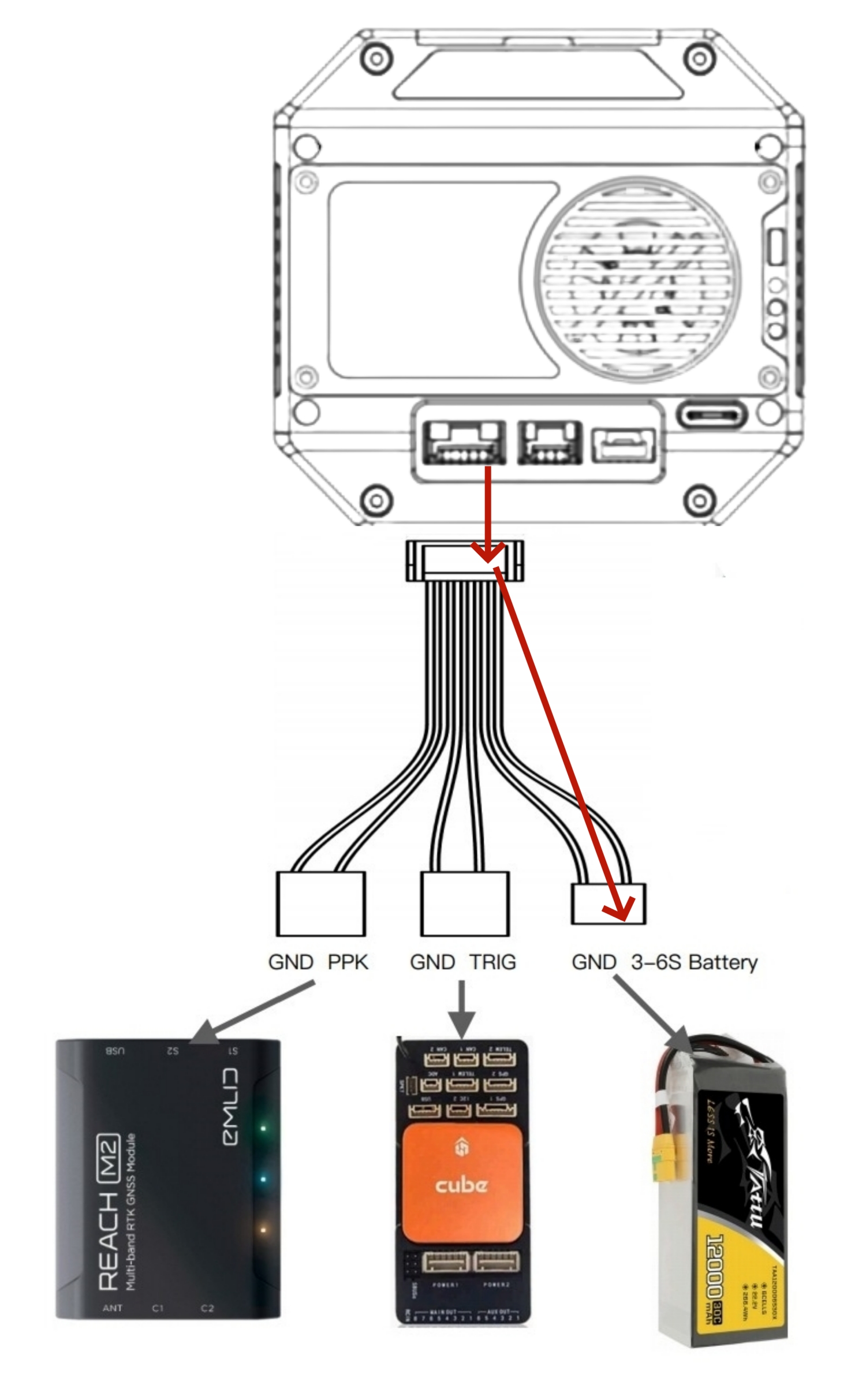

Power the camera by connecting the VIN and GND wih 3-6S lipo battery.

PreviousConnect the CameraNextInsert a SD Card

Last updated 11 months ago

12-28V DC power supply

VIN = 12-28V

GND= Ground

DO NOT!

Do not power the camera with any power supply that provides more than 28V, as it may damage the camera (the lowest Voltage is 10 V, ideally 12-28V)

Do not power the camera using high noise, high frequency, high amplitude energy and unstable AC-DC power supply (most common AC adapters), unless your engineering team can do specific custom made AC-DC that generates very low noise, low frequency, low amplitude energy, also stable voltage in the circuit, do not recommand wall AC-DC adapter due to the unregulated power supply.
