Format your SD Card

Once you get ADTI CAM Assistant 1.1 ready, now you can formet your SD card with your camera module.

PreviousADTI CAM Assistant 1.1 #3NextMAVlink and Geo-tagging (QGroundControl) #1

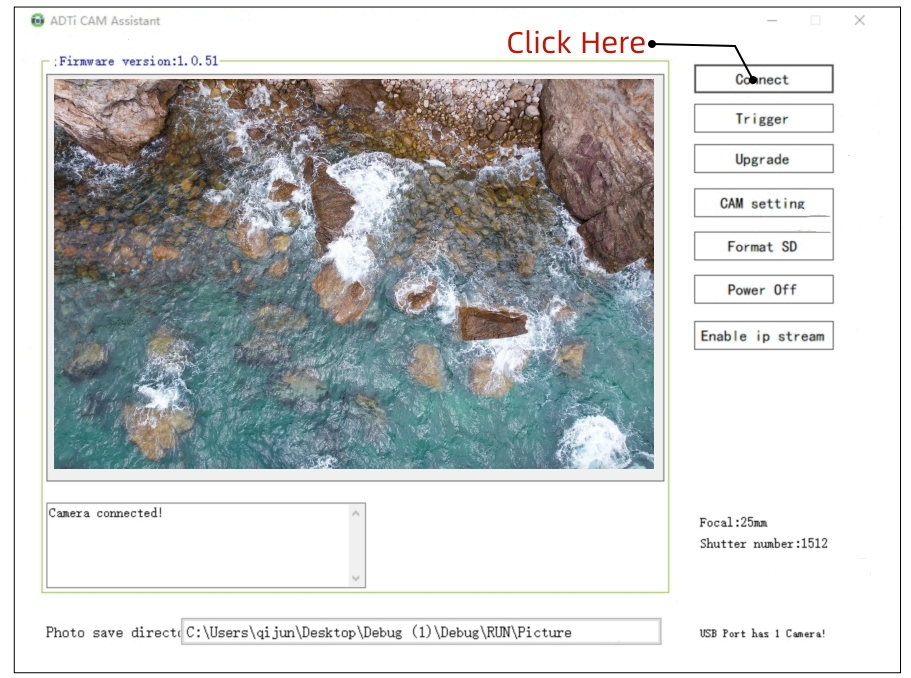

Once you put SD card in the camera, connect the ADTI CAM Assistant 1.1,click [connect]:

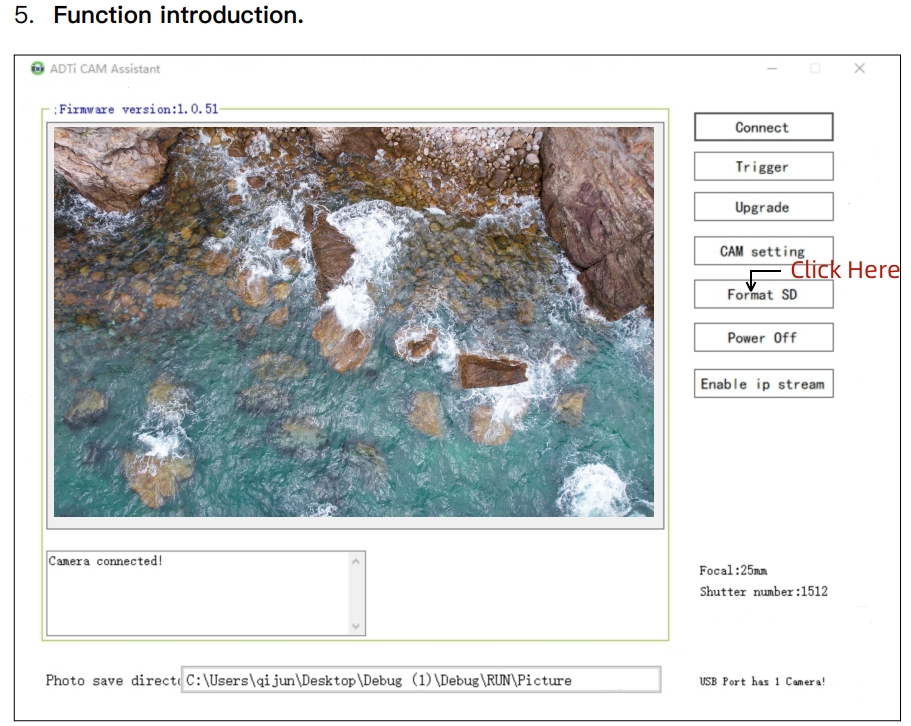

After the camera connects to the DTI CAM Assistant 1.1, click [Format SD]:
