ADTI CAM Assistant 1.1 #1

ADTI CAM Assistant 1.1 is a ADTI self-developed camera module PC (windows 64) system for 45S V1 module camera settings.

Please NOTE: if you PC can find the camera once connect with USB, but could not connect to the software, then you need a USB Hub to provide 5V sufficient power supply to camera.

Driver Installation

1. Connect the camera to the computer with the USB cable.

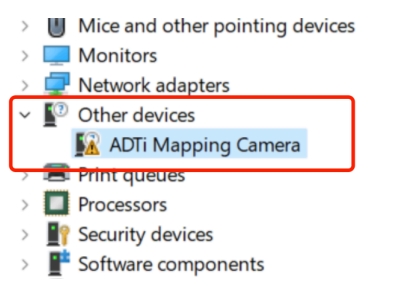

When you access the ADTi camera for the first time, you will see other devices that are not driven under the Device Manager, the device name is ADTi Mapping Camera, as shown in the figure below.

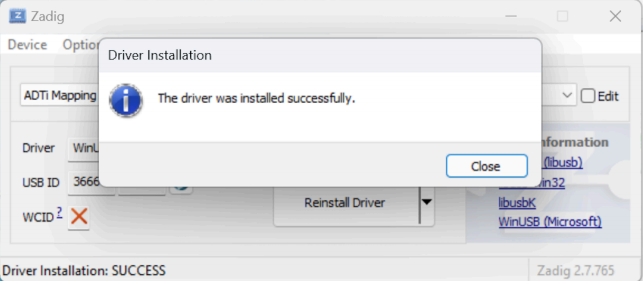

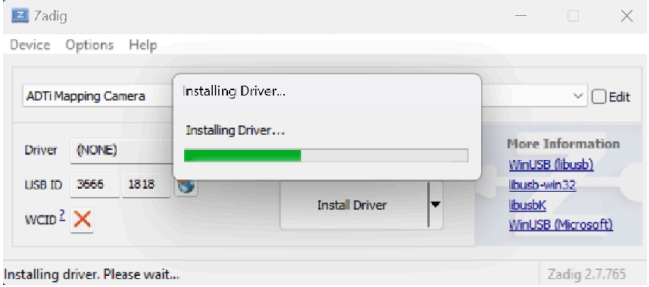

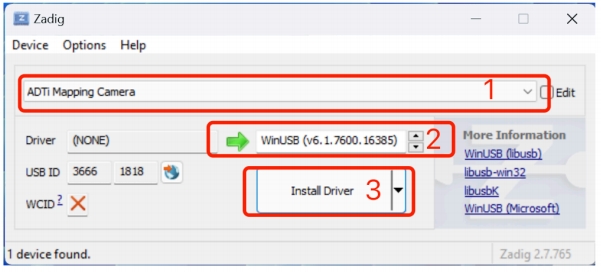

take 2-3 minutes to install the driver.

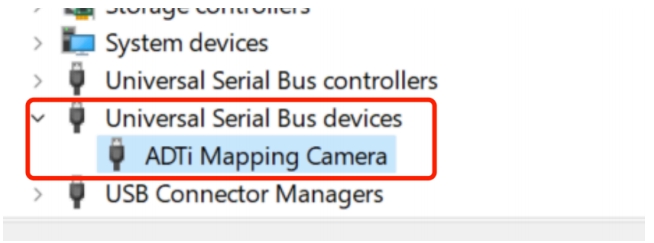

3. After the installation is complete, you can see that the ADTi Mapping Camea is in a normal state under the Device Manager.

4. Reconnect the camera to the computer once, then you can use the software to set up the camera normally .

Caution: If the computer has previously installed the libusb-win32 driver, you need to remove the corresponding device and uninstall the driver first.
