# Camera GPS Protocol and SDK - Serial Port Control Protocol#2

45S V1 full frame camera module has GPS protocol for direct image geotagging and camera SDK for both Windows and Liunx through the camera serial port control protocol (UART)

**Commands sent to the camera**

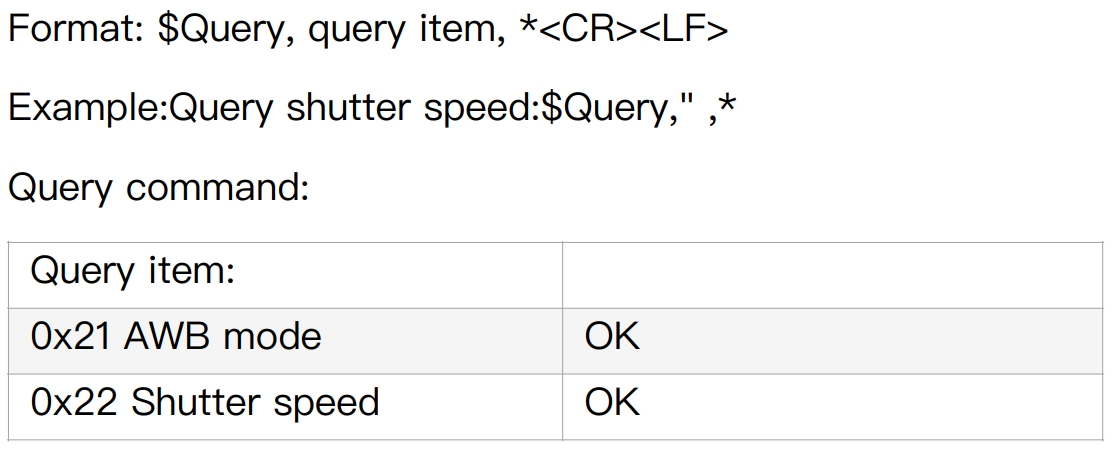

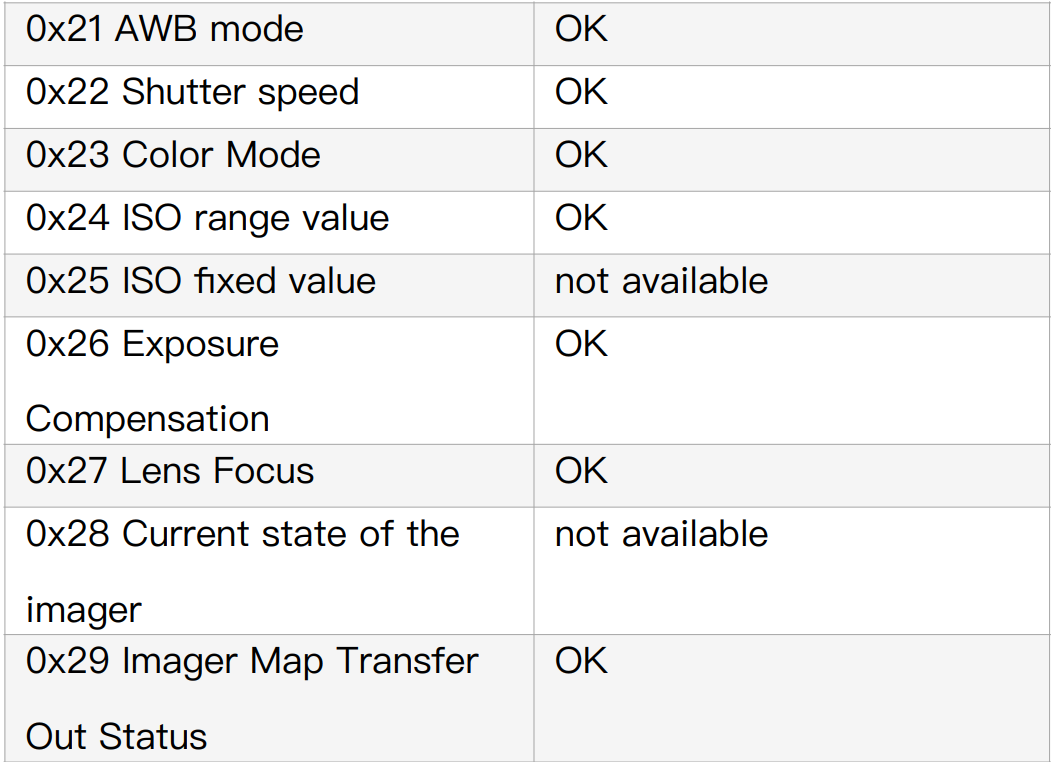

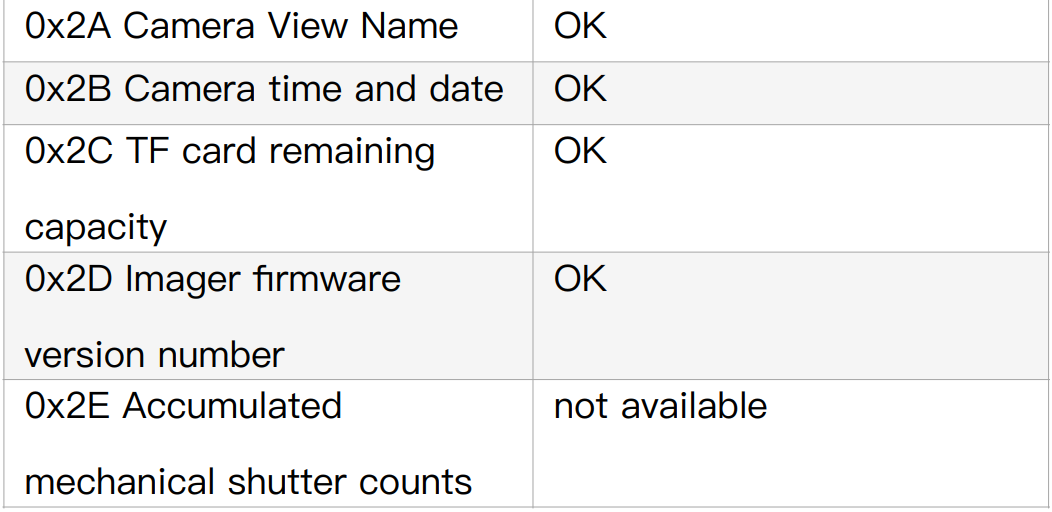

1\) Query Camera Parameters Command

<figure><img src="https://content.gitbook.com/content/ohDfTeHghTduCKJhDs5w/blobs/RpevJdqeQcNYTfEOrbry/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/ohDfTeHghTduCKJhDs5w/blobs/3ylKr1W2bRTfxXnKiKEq/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/ohDfTeHghTduCKJhDs5w/blobs/kM94jUvyoNgRWE5BbBPd/image.png" alt=""><figcaption></figcaption></figure>
