ADTI CAM Assistant 1.1 #2

ADTI CAM Assistant 1.1 is a ADTI self-developed camera module PC (windows 64) system for 45S V1 module camera settings.

Software-ADTI CAM Assistant 1.1 Tutorial

1. Power on the camera and connecting the camera to the PC via USB.

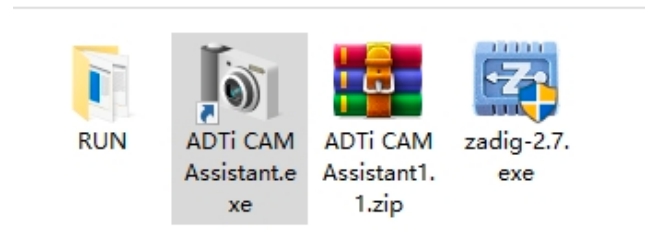

2. Open the ADTi CAM Assistant.exe

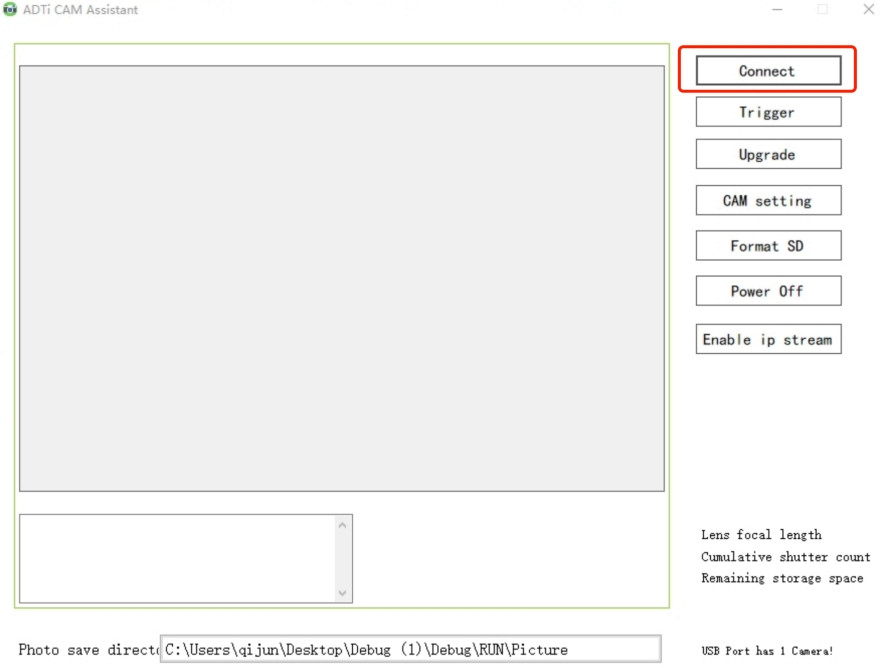

1. Click the Connect button for connecting camera.

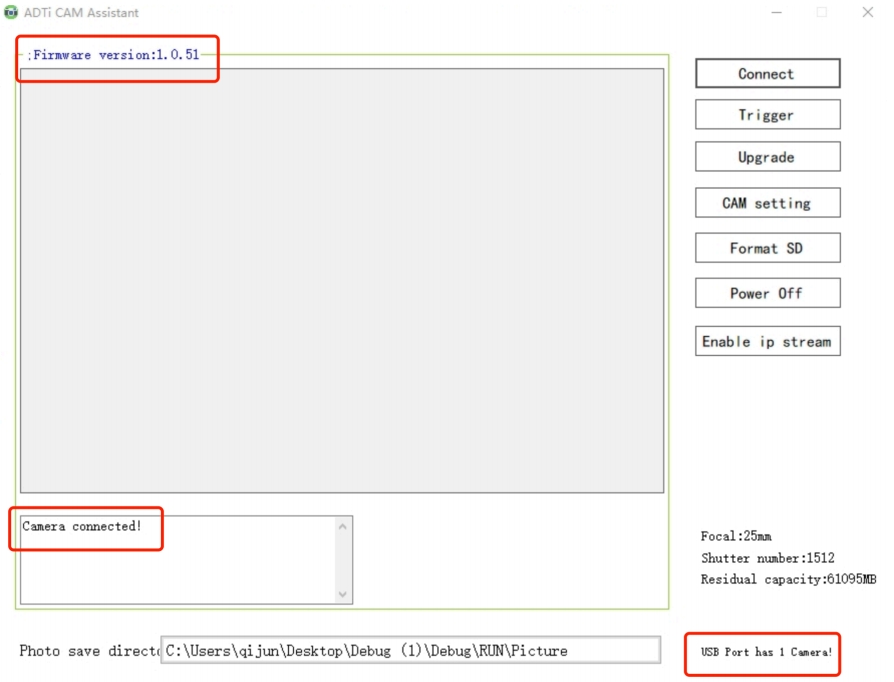

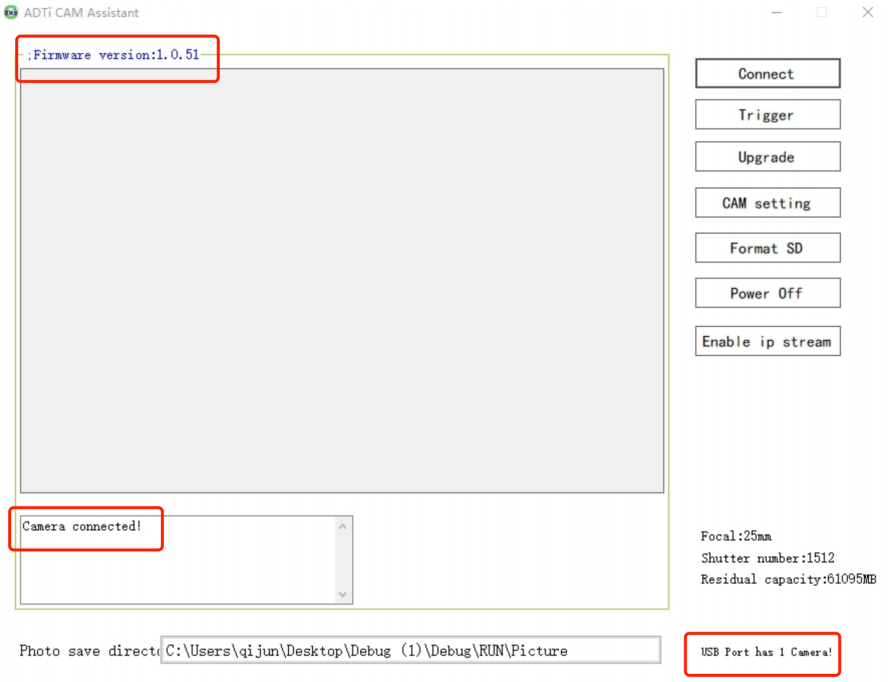

1. After the connection is successful, the following message indicates that the Camera connected.

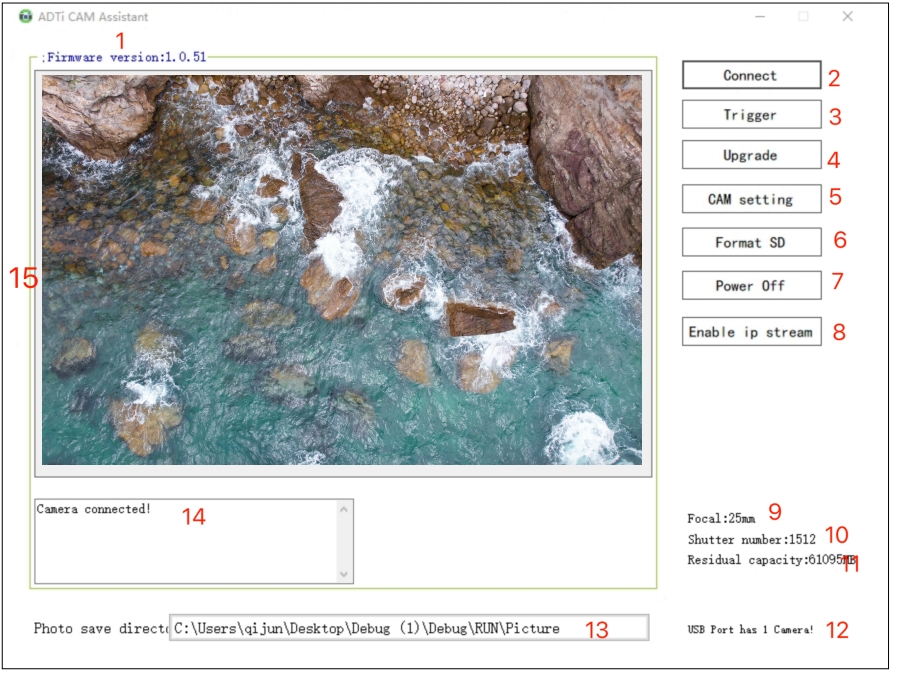

5. ADTI CAM Assistant 1.1 Function introduction.

1. Camera Firmware version.

2. Click to connect the camera.

3. Trigger camera to take a picture.

4. Upgrade Firmware via .bin file.

5. Click in to the camera setting page.

6. Format the camera TF card.

7. Power off the camera.

8. Click to Enable the camera UDP/RTSP video stream function.

9. Lens focal length information.

10. Total number of shutter operations of the camera.

11. Size of free space on memory card

12. Number of ADTi cameras on USB ports 17/19

13. Photo File Cache Location on the PC

14. Massage box the camera action.

15. The current photo preview window.
