# Camera GPS Protocol and SDK - Serial Port Control Protocol#4

45S V1 full frame camera module has GPS protocol for direct image geotagging and camera SDK for both Windows and Liunx through the camera serial port control protocol (UART)

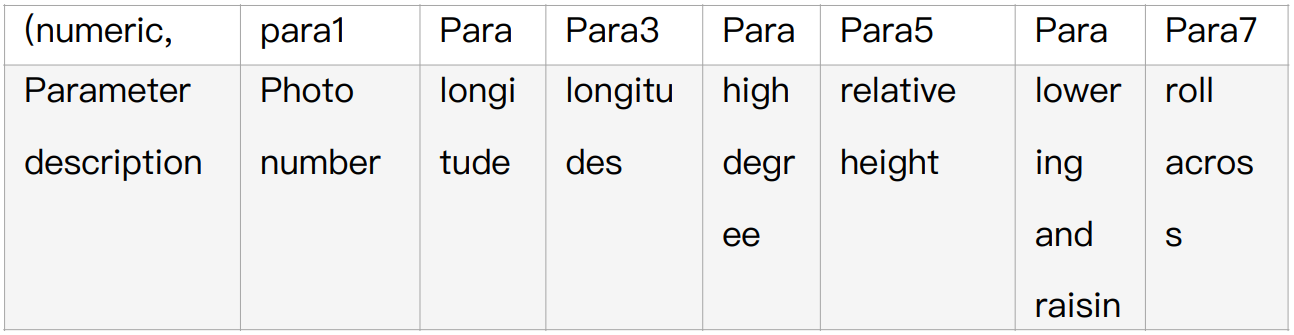

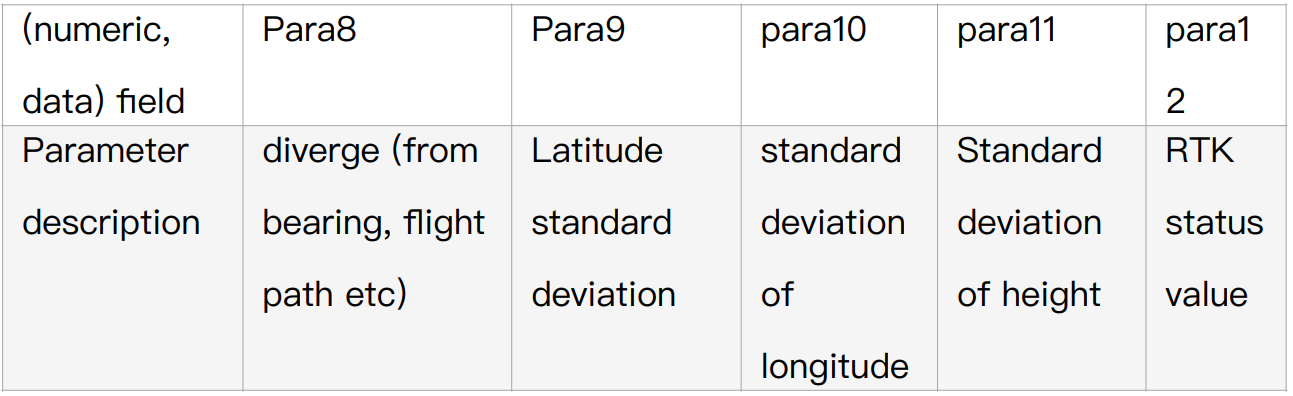

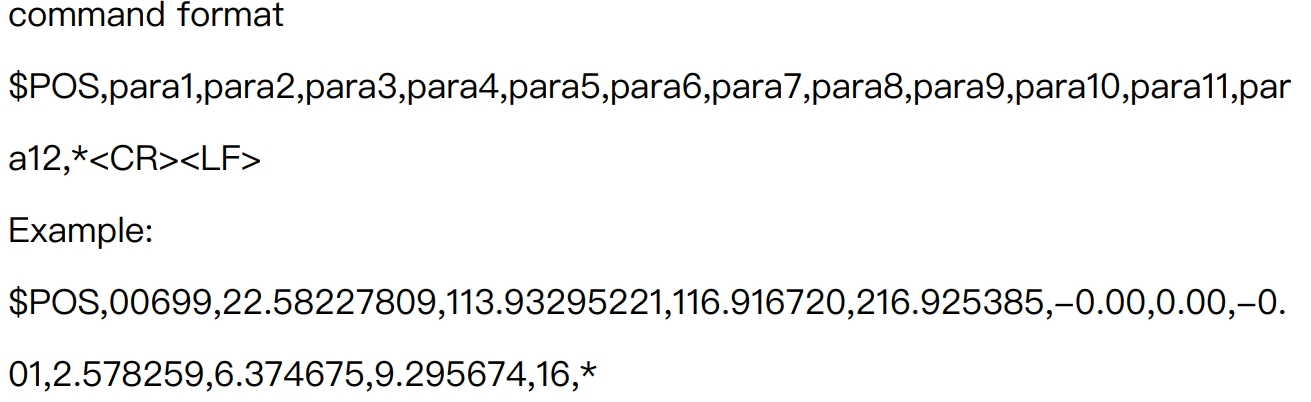

**Send GPS information**

<figure><img src="https://content.gitbook.com/content/ohDfTeHghTduCKJhDs5w/blobs/lbRFpZrQBk5RCTvdGPAo/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/ohDfTeHghTduCKJhDs5w/blobs/bdZnNa0SimN4dQ9fapO9/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/ohDfTeHghTduCKJhDs5w/blobs/pTjke8JcEFxme0qk9sgu/image.png" alt=""><figcaption></figcaption></figure>
