Package List

This is a quick start guide for 45CMF, which has the most usefull information that you need to setup your 45CMF at first time, please let us know if you still have questions.

NextCamera Engineering Drawing#1

Last updated 24 days ago

Introducing ADTI latest 45MP full frame camera with Sony IMX 366 image sensor-the ADTi 45CMF camera module, which is an ADTI self-developed 45MP full frame camera module, it adopts CMF design that focuses on the chromatic, tactile and decorative identity of industrial camera product. What's more, our engineers considered the product's application in the drone environment, so this product has extremely light weight, extremely small size, and all-aluminum heat dissipation performance.

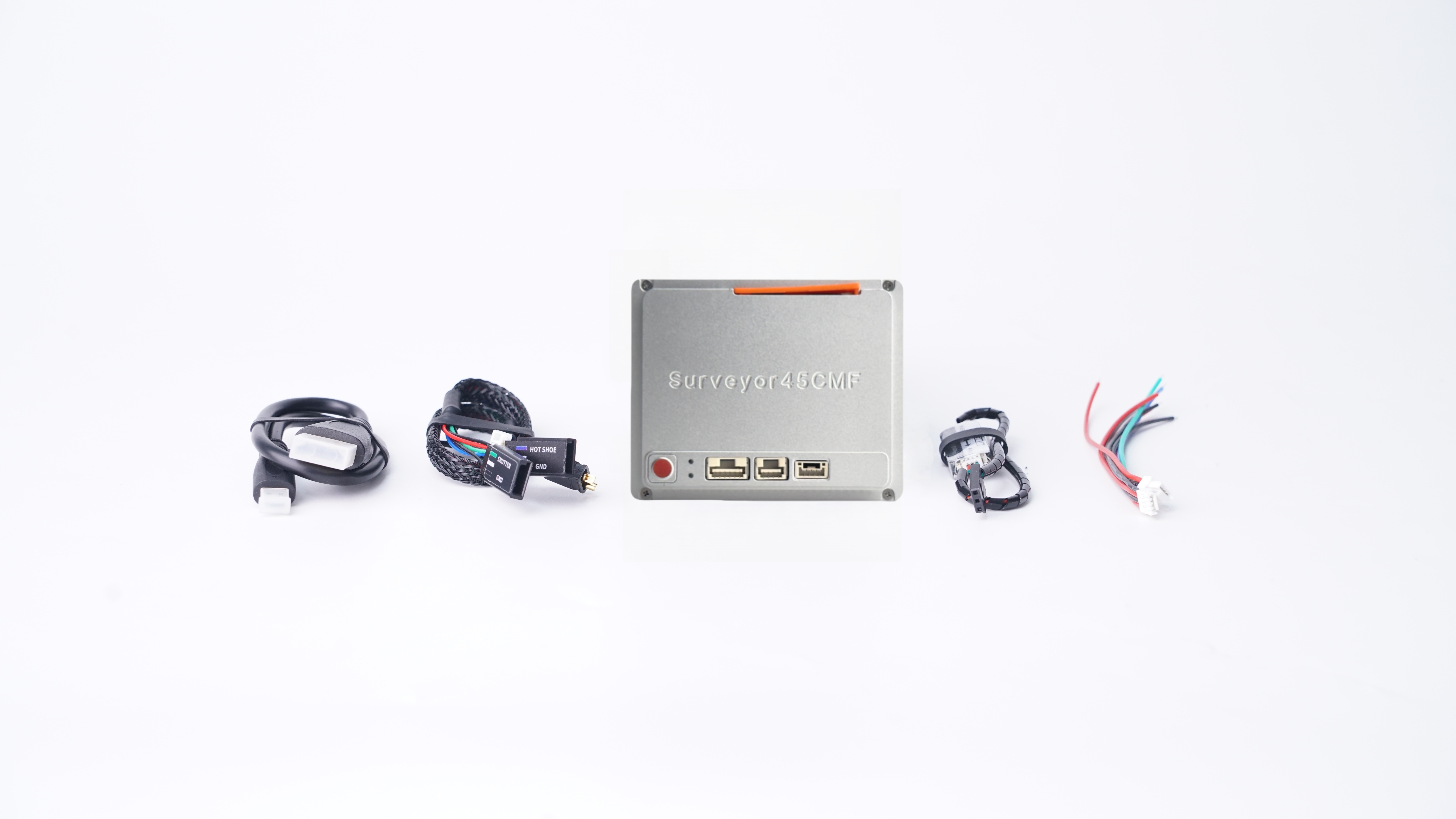

you should have the camera and accessories shows in the above photo, if you are missing anything, please contact us.
