FlyCamAdmin#1

Once you click the [Connect Cam] on FlyCamAdmin, the camera should connect with software:

PreviousFormat your TF Card NextFlyCamAdmin#2

following image will appear to show your camera information:

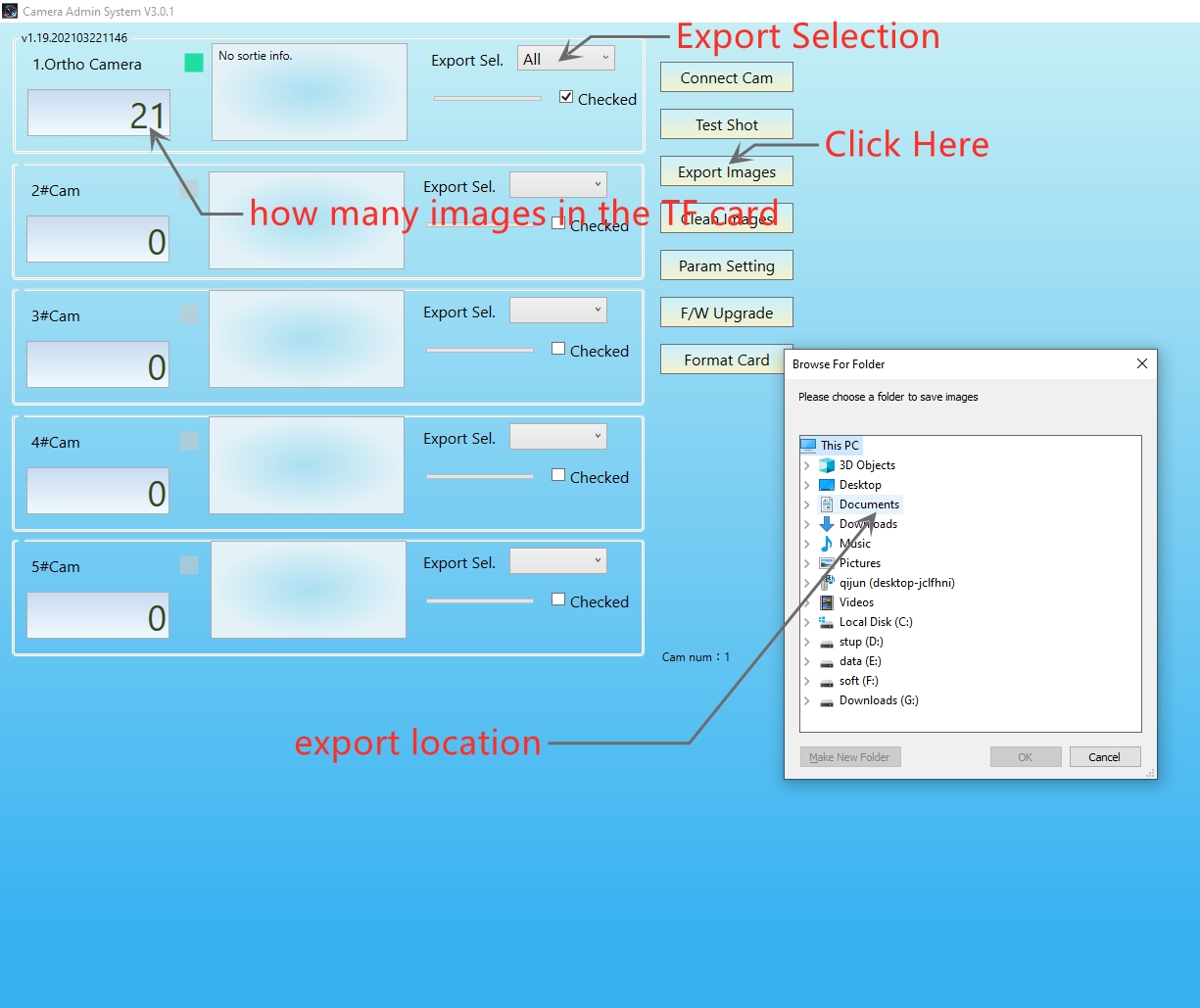

Click [Export Images] you can easily export all images in the TF card without take the card out from the camera.
