Connect the Camera Hotshoe to PPK GNSS

The 20L or 24L V1 camera has hotshoe pins that can connect to a PPK(RTK) GNSS unit, in this page we are going to use Emlid Reach GNSS as an example of PPK GNSS unit.

PreviousCamera Settings#2Next20L 24L V1 3D . Step File View and Download

Last updated 1 year ago

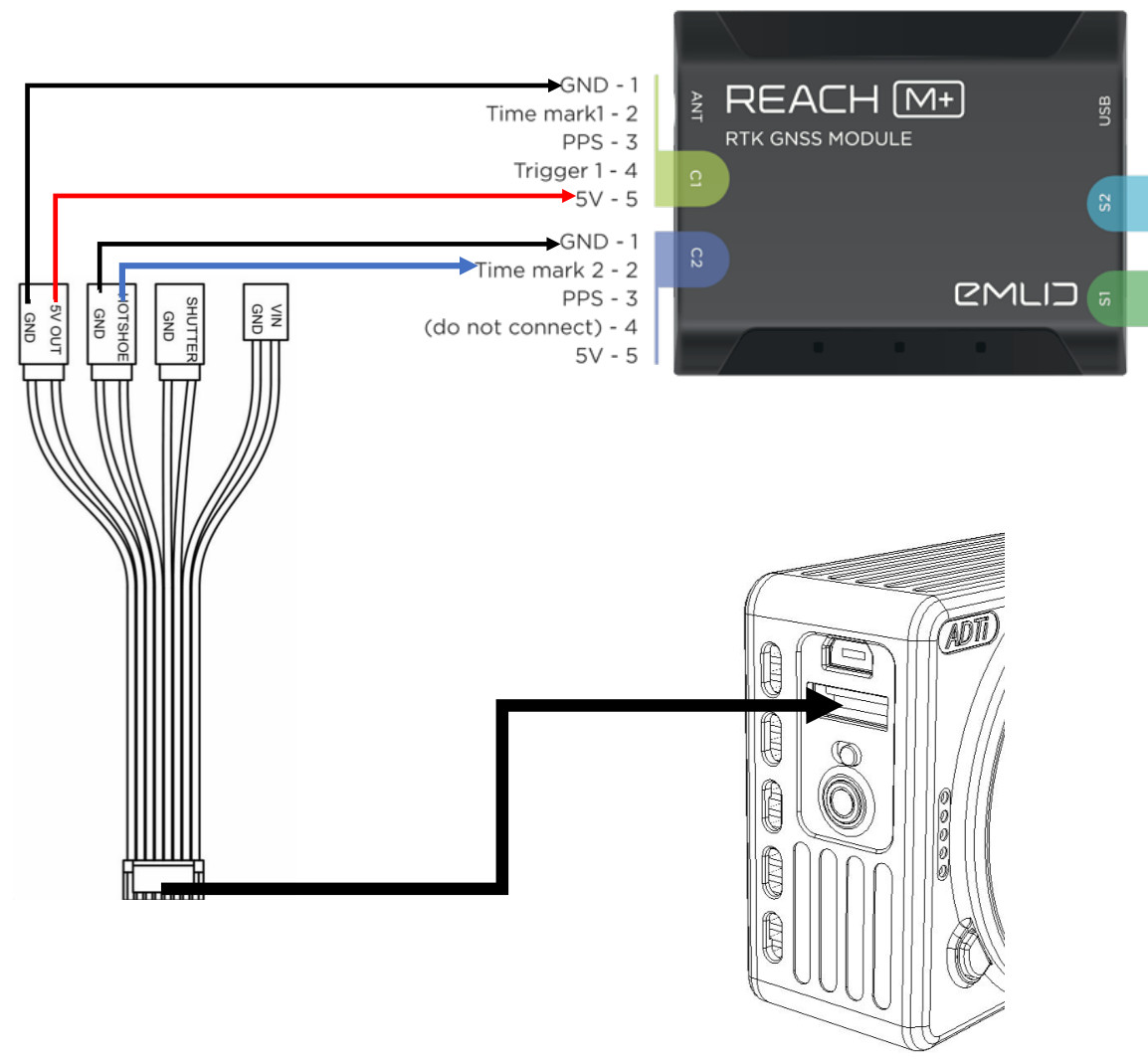

Please see the photo below shows how to connect the Emlid Reach PPK:
