Power the Camera#1

Power the camera by connecting the VIN and GND wih 3-6S lipo battery.

PreviousCamera Engineering Drawing#2NextConnect the Camera Trigger

Last updated 1 year ago

10-25V DC power supply

VIN = 10-25V

GND= Ground

DO NOT!

Do not power the camera with any power supply that provides more than 25 V, as it may damage the camera.

Do not power the camera using high noise, high frequency, high amplitude energy and unstable AC-DC power supply (most common AC adapters), unless your engineering team can do specific custom made AC-DC that generates very low noise, low frequency, low amplitude energy, also stable voltage in the circuit, do not recommand wall AC-DC adapter due to the unregulated power supply.

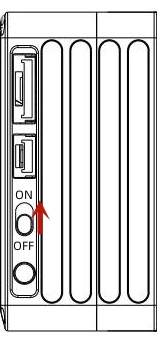

make sure the OFF/ON Swtich to ON to turn on the camera.
