On this page

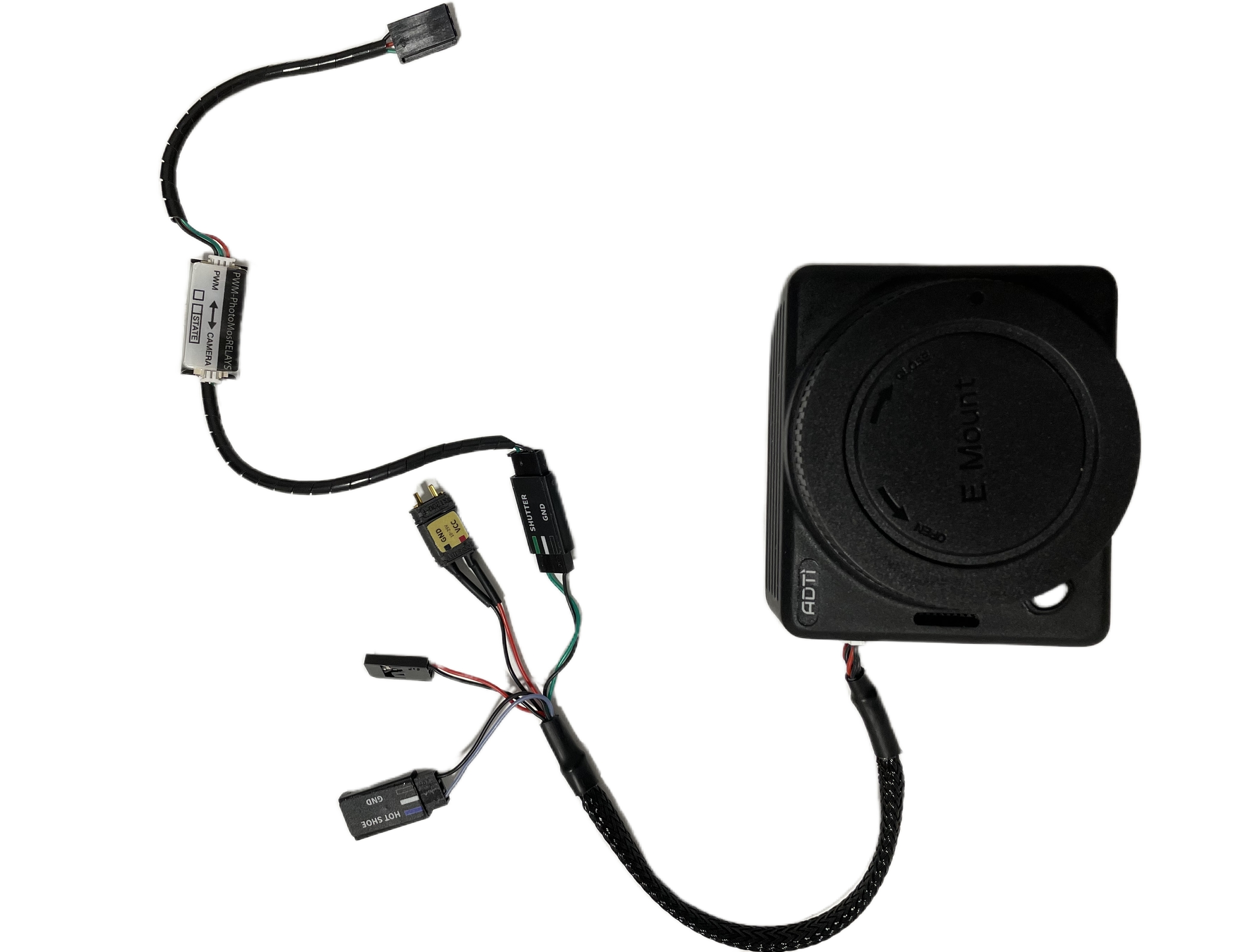

Connect the Camera Trigger

The 24L V2 camera package does not have relay-to-PWM module.

PreviousPower the Camera#1NextTrigger the Camera

Last updated 1 year ago

Please note 42L does not have Relay-to-PWM module, the Factory default triggering method is PWM, unless user contact ADTi tech support service before purchasing. It is either Relay (TTL) or PWM trigger, but it can be changed from PWM to TTL by flashing the camera firmware (please read [How to Flashing ADTi camera firmware] section to see the details).
